Engine Piston Kit | KB144KTM.030

Centered pin.

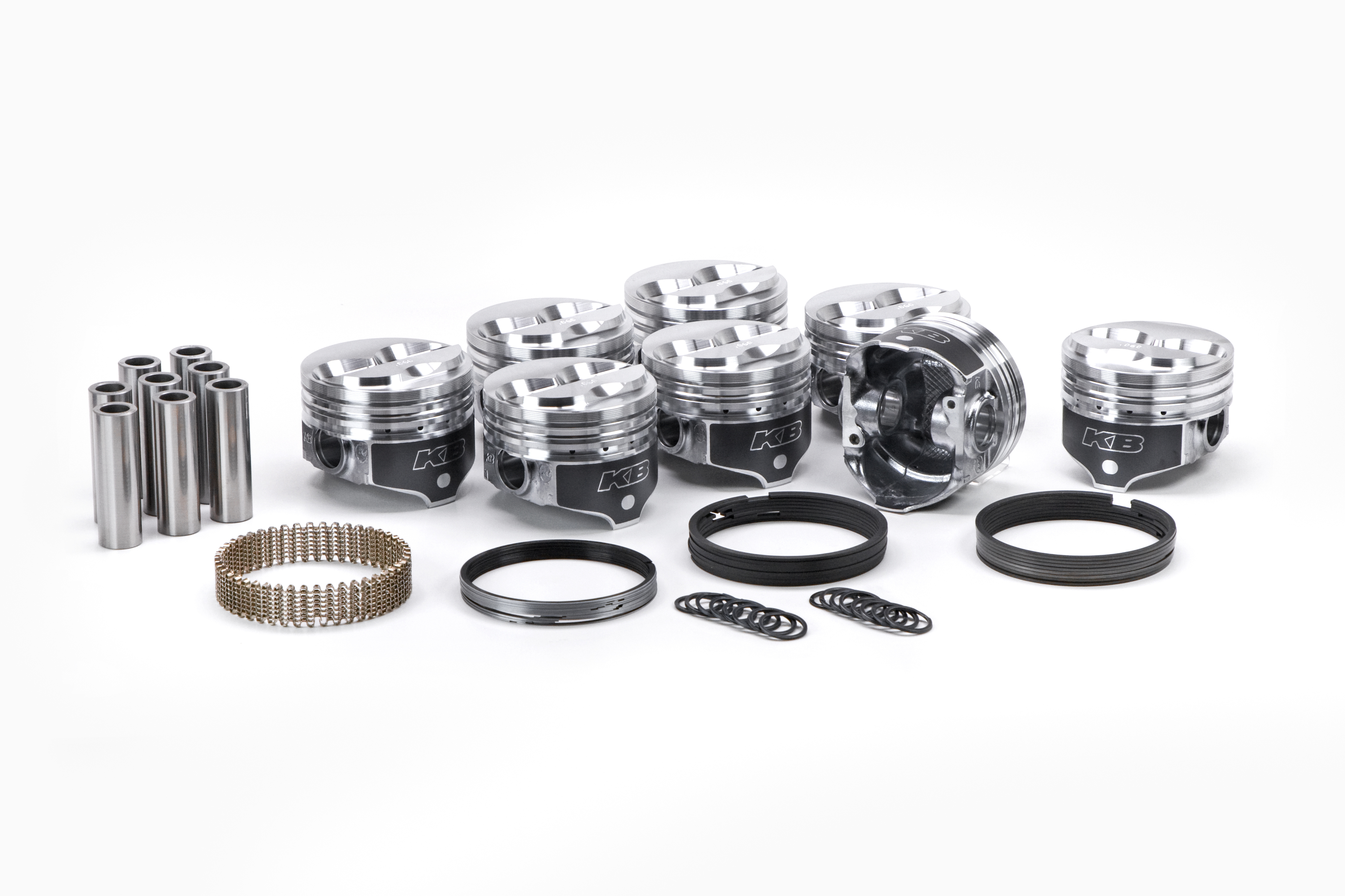

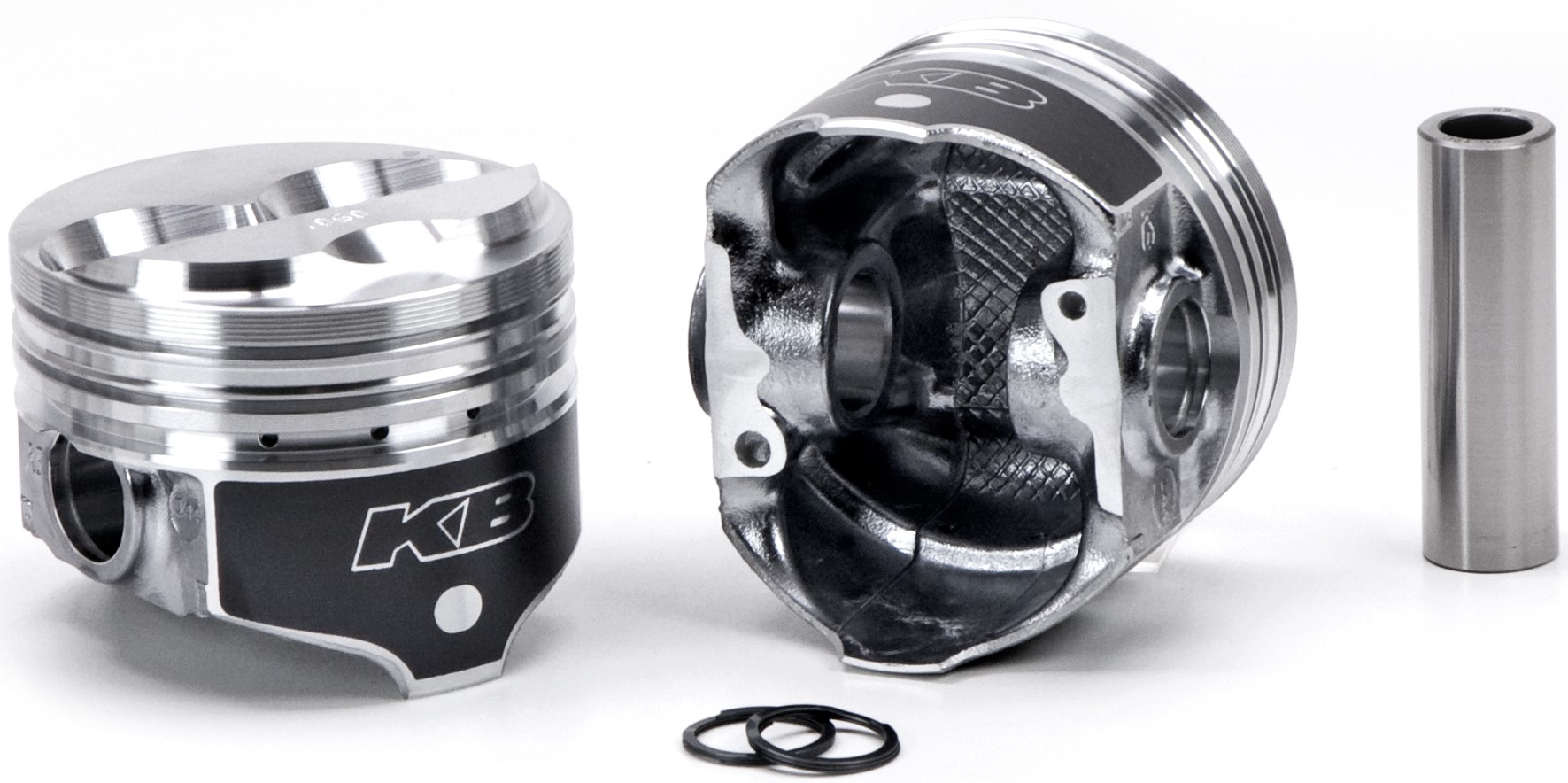

KB Hyper Piston - Chevy 305, Rod 5.700, Solid Dome -.5cc 2V Kit with Rings

PDF Documents
KB_Automotive_Installation_Instructions.pdf pdf Installation Instruction

Product Specifications
Sold As Complete Piston and Ring Kit
Engine Manufacturer Chevrolet
Engine Family Chevrolet SB V8 Gen I
Year Range 1960-2002
Bore Diameter IN 3.736
Bore Diameter MM 94.9
Eng. Disp Liters 5
Stroke (in) 3.48
Stroke (mm) 88.4
Eng. Disp. Liters 5
Oversized Yes
Eng. Disp. In. 305
Compression Height IN 1.561
Oversize .030
Oversizes STD .020 .030 .040 .060
Rod (in) 5.7
Rod (mm) 144.78
Pin Number 0927X300K
Oe Deck Height 9.025
Compression Height IN 1.561
Pin Configuration Centered
Compression Height MM 39.6
Crown (cc) -.5cc
Lock PRJ100-3
Compression Ratio 55-11.3, 58-10.8, 64-10.0, 76-8.7
Crown Type .100" SOLID DOME 2V
Pin Type Press or Floating
Pin Diameter (in) .927
Intake Valve Depth/diameter .280/2.000
Alloy 390
Pin Diameter (mm) 23.5
Alloy Cast 390 Hypereutectic Alloy
Exhaust Valve Depth/diameter .280/2.000
Ring Pack 5/64, 5/64, 3/16
Piston Material Cast 390 Hypereutectic Alloy
Top Land .275
